前言

一、recursiveInitialization

二、doInitialization

三、libSystem

四、libdispatch

五、load方法和c++方法执行

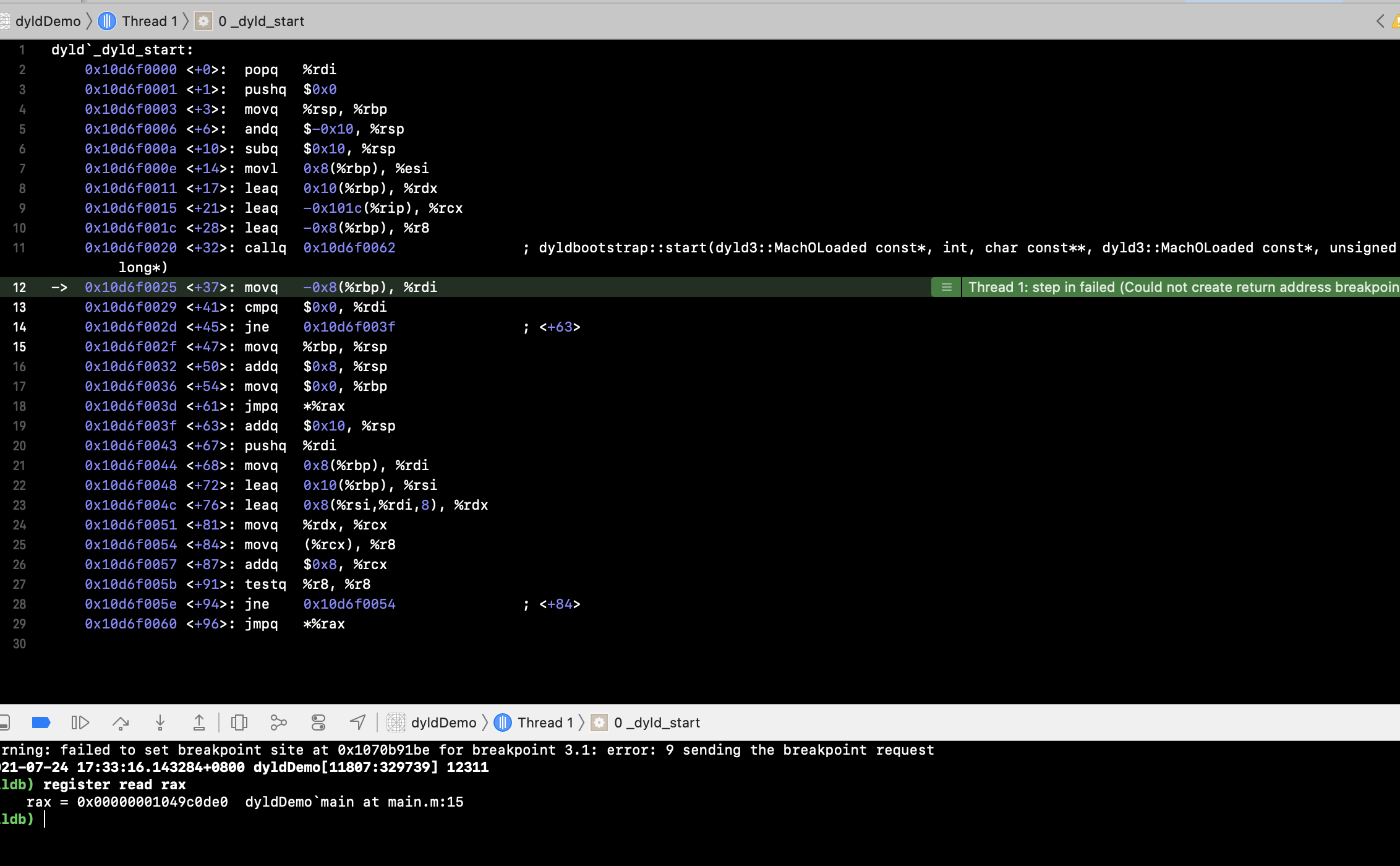

六、main函数的执行

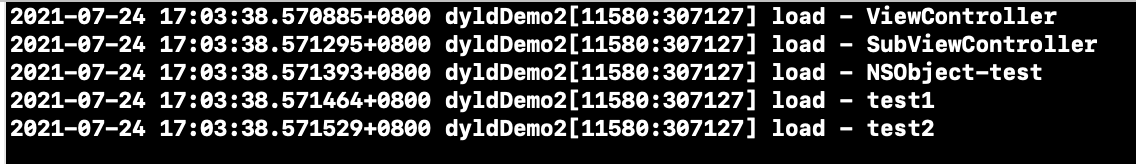

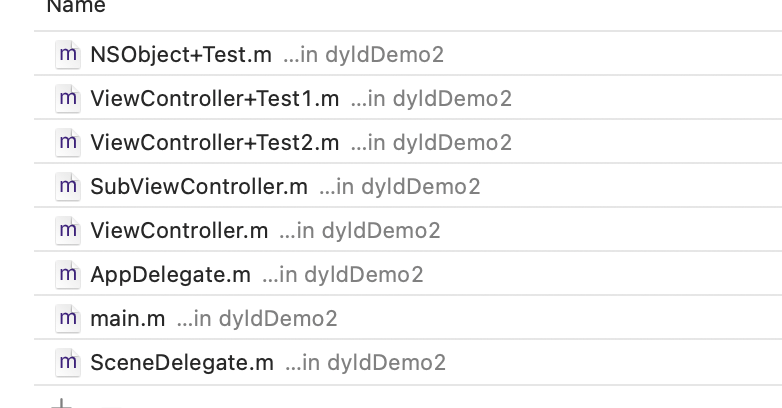

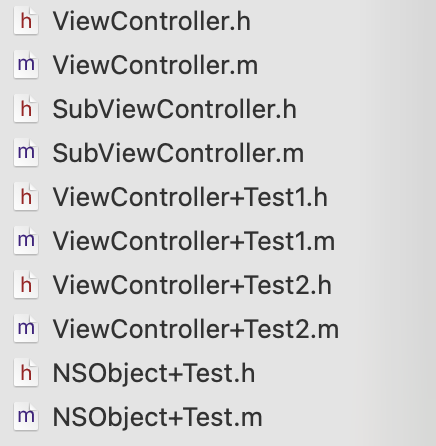

七、load方法和initialize方法加载顺序分析

通过前面对dyld的分析，我们已经分析到了最核心的地方：递归初始化镜像文件。这篇文章就具体来分析初始化流程，比如初始化libSystem、libDispath、libObjc等系统库初始化的流程。

一、recursiveInitialization

void ImageLoader::recursiveInitialization(const LinkContext& context, mach_port_t this_thread, const char* pathToInitialize,
										  InitializerTimingList& timingInfo, UninitedUpwards& uninitUps)
{
	recursive_lock lock_info(this_thread);
	recursiveSpinLock(lock_info);

	if ( fState < dyld_image_state_dependents_initialized-1 ) {
		uint8_t oldState = fState;
		// break cycles
		fState = dyld_image_state_dependents_initialized-1;
		try {
			// initialize lower level libraries first
            //先初始化依赖库
			for(unsigned int i=0; i < libraryCount(); ++i) {
				ImageLoader* dependentImage = libImage(i);
				if ( dependentImage != NULL ) {
					// don't try to initialize stuff "above" me yet
					if ( libIsUpward(i) ) {
						uninitUps.imagesAndPaths[uninitUps.count] = { dependentImage, libPath(i) };
						uninitUps.count++;
					}
					else if ( dependentImage->fDepth >= fDepth ) {
						dependentImage->recursiveInitialization(context, this_thread, libPath(i), timingInfo, uninitUps);
					}
                }
			}

			// record termination order
			if ( this->needsTermination() )
				context.terminationRecorder(this);

			// let objc know we are about to initialize this image
			uint64_t t1 = mach_absolute_time();
			fState = dyld_image_state_dependents_initialized;
			oldState = fState;
			context.notifySingle(dyld_image_state_dependents_initialized, this, &timingInfo);

			// initialize this image
            //核心方法
			bool hasInitializers = this->doInitialization(context);

			// let anyone know we finished initializing this image
			fState = dyld_image_state_initialized;
			oldState = fState;
			context.notifySingle(dyld_image_state_initialized, this, NULL);

			if ( hasInitializers ) {
				uint64_t t2 = mach_absolute_time();
				timingInfo.addTime(this->getShortName(), t2-t1);
			}
		}
		catch (const char* msg) {
			// this image is not initialized
			fState = oldState;
			recursiveSpinUnLock();
			throw;
		}
	}

	recursiveSpinUnLock();
}

首先整个递归流程加了一把递归锁。由于镜像文件也会依赖其他的库，所以这里会先递归初始化所有的依赖库。然后再初始化自身的库。

其中核心的初始化方法就是：doInitialization。

然后通过 notifySingle，通知依赖库和自己本身的库初始化完毕。
我们先看notifySingle函数：

static void notifySingle(dyld_image_states state, const ImageLoader* image, ImageLoader::InitializerTimingList* timingInfo)
{
	//dyld::log("notifySingle(state=%d, image=%s)\n", state, image->getPath());
	std::vector<dyld_image_state_change_handler>* handlers = stateToHandlers(state, sSingleHandlers);
	if ( handlers != NULL ) {
		dyld_image_info info;
		info.imageLoadAddress	= image->machHeader();
		info.imageFilePath		= image->getRealPath();
		info.imageFileModDate	= image->lastModified();
		for (std::vector<dyld_image_state_change_handler>::iterator it = handlers->begin(); it != handlers->end(); ++it) {
			const char* result = (*it)(state, 1, &info);
			if ( (result != NULL) && (state == dyld_image_state_mapped) ) {
				//fprintf(stderr, "  image rejected by handler=%p\n", *it);
				// make copy of thrown string so that later catch clauses can free it
				const char* str = strdup(result);
				throw str;
			}
		}
	}
	if ( state == dyld_image_state_mapped ) {
		// <rdar://problem/7008875> Save load addr + UUID for images from outside the shared cache
		// <rdar://problem/50432671> Include UUIDs for shared cache dylibs in all image info when using private mapped shared caches
		if (!image->inSharedCache()
			|| (gLinkContext.sharedRegionMode == ImageLoader::kUsePrivateSharedRegion)) {
			dyld_uuid_info info;
			if ( image->getUUID(info.imageUUID) ) {
				info.imageLoadAddress = image->machHeader();
				addNonSharedCacheImageUUID(info);
			}
		}
	}
	if ( (state == dyld_image_state_dependents_initialized) && (sNotifyObjCInit != NULL) && image->notifyObjC() ) {
		uint64_t t0 = mach_absolute_time();
		dyld3::ScopedTimer timer(DBG_DYLD_TIMING_OBJC_INIT, (uint64_t)image->machHeader(), 0, 0);
		(*sNotifyObjCInit)(image->getRealPath(), image->machHeader());
		uint64_t t1 = mach_absolute_time();
		uint64_t t2 = mach_absolute_time();
		uint64_t timeInObjC = t1-t0;
		uint64_t emptyTime = (t2-t1)*100;
		if ( (timeInObjC > emptyTime) && (timingInfo != NULL) ) {
			timingInfo->addTime(image->getShortName(), timeInObjC);
		}
	}
    // mach message csdlc about dynamically unloaded images
	if ( image->addFuncNotified() && (state == dyld_image_state_terminated) ) {
		notifyKernel(*image, false);
		const struct mach_header* loadAddress[] = { image->machHeader() };
		const char* loadPath[] = { image->getPath() };
		notifyMonitoringDyld(true, 1, loadAddress, loadPath);
	}
}

可以看到(*sNotifyObjCInit)(image->getRealPath(), image->machHeader());
但是sNotifyObjCInit并没有找到。
我们全局搜索一下sNotifyObjCInit：

void registerObjCNotifiers(_dyld_objc_notify_mapped mapped, _dyld_objc_notify_init init, _dyld_objc_notify_unmapped unmapped)
{
	// record functions to call
	sNotifyObjCMapped	= mapped;
	sNotifyObjCInit		= init;
	sNotifyObjCUnmapped = unmapped;

	// call 'mapped' function with all images mapped so far
	try {
		notifyBatchPartial(dyld_image_state_bound, true, NULL, false, true);
	}
	catch (const char* msg) {
		// ignore request to abort during registration
	}

	// <rdar://problem/32209809> call 'init' function on all images already init'ed (below libSystem)
	for (std::vector<ImageLoader*>::iterator it=sAllImages.begin(); it != sAllImages.end(); it++) {
		ImageLoader* image = *it;
		if ( (image->getState() == dyld_image_state_initialized) && image->notifyObjC() ) {
			dyld3::ScopedTimer timer(DBG_DYLD_TIMING_OBJC_INIT, (uint64_t)image->machHeader(), 0, 0);
			(*sNotifyObjCInit)(image->getRealPath(), image->machHeader());
		}
	}
}

发现这个注册函数，而sNotifyObjCinit就是在这里赋值的。
继续全局搜索registerObjCNotifiers

void _dyld_objc_notify_register(_dyld_objc_notify_mapped    mapped,
                                _dyld_objc_notify_init      init,
                                _dyld_objc_notify_unmapped  unmapped)
{
	dyld::registerObjCNotifiers(mapped, init, unmapped);
}

可以看到_dyld_objc_notify_register，这个函数在objc源码中出现过:

objc源码:
void _objc_init(void)
{
    static bool initialized = false;
    if (initialized) return;
    initialized = true;

    // fixme defer initialization until an objc-using image is found?
    environ_init();
    tls_init();
    static_init();
    runtime_init();
    exception_init();
#if __OBJC2__
    cache_t::init();
#endif
    _imp_implementationWithBlock_init();
    //dyld注册回调函数
    _dyld_objc_notify_register(&map_images, load_images, unmap_image);

#if __OBJC2__
    didCallDyldNotifyRegister = true;
#endif
}

显然_dyld_objc_notify_register是在_objc_init中注册的，那么我们应该在dyld调用(*sNotifyObjCInit)(image->getRealPath(), image->machHeader()) 之前就应该先初始化_objc_init才对。
所以接下来，我们回过头来具体分析： recursiveInitialization方法中的doInitialization。

二、doInitialization

bool ImageLoaderMachO::doInitialization(const LinkContext& context)
{
	CRSetCrashLogMessage2(this->getPath());

	// mach-o has -init and static initializers
	doImageInit(context);
	doModInitFunctions(context);

	CRSetCrashLogMessage2(NULL);

	return (fHasDashInit || fHasInitializers);
}

我们先来看doImageInit函数：

void ImageLoaderMachO::doImageInit(const LinkContext& context)
{
	if ( fHasDashInit ) {
		const uint32_t cmd_count = ((macho_header*)fMachOData)->ncmds;
		const struct load_command* const cmds = (struct load_command*)&fMachOData[sizeof(macho_header)];
		const struct load_command* cmd = cmds;
		for (uint32_t i = 0; i < cmd_count; ++i) {
			switch (cmd->cmd) {
				case LC_ROUTINES_COMMAND:
					Initializer func = (Initializer)(((struct macho_routines_command*)cmd)->init_address + fSlide);
#if __has_feature(ptrauth_calls)
					func = (Initializer)__builtin_ptrauth_sign_unauthenticated((void*)func, ptrauth_key_asia, 0);
#endif
					// <rdar://problem/8543820&9228031> verify initializers are in image
					if ( ! this->containsAddress(stripPointer((void*)func)) ) {
						dyld::throwf("initializer function %p not in mapped image for %s\n", func, this->getPath());
					}
					//libSystem 必须先初始化
					if ( ! dyld::gProcessInfo->libSystemInitialized ) {
						// <rdar://problem/17973316> libSystem initializer must run first
						dyld::throwf("-init function in image (%s) that does not link with libSystem.dylib\n", this->getPath());
					}
					if ( context.verboseInit )
						dyld::log("dyld: calling -init function %p in %s\n", func, this->getPath());
					{
						dyld3::ScopedTimer(DBG_DYLD_TIMING_STATIC_INITIALIZER, (uint64_t)fMachOData, (uint64_t)func, 0);
						func(context.argc, context.argv, context.envp, context.apple, &context.programVars);
					}
					break;
			}
			cmd = (const struct load_command*)(((char*)cmd)+cmd->cmdsize);
		}
	}
}

可以看到，dyld从mach-o中读取所有的load_command，然后遍历每一个load_command，读取到初始化地址，然后执行func。
其中必须先初始化libSystem，所以我们进入libSystem的源码。

三、libSystem

__attribute__((constructor))
static void
libSystem_initializer(int argc,
		      const char* argv[],
		      const char* envp[],
		      const char* apple[],
		      const struct ProgramVars* vars)
{
	static const struct _libkernel_functions libkernel_funcs = {
		.version = 4,
		// V1 functions
#if !TARGET_OS_DRIVERKIT
		.dlsym = dlsym,
#endif
		.malloc = malloc,
		.free = free,
		.realloc = realloc,
		._pthread_exit_if_canceled = _pthread_exit_if_canceled,
		// V2 functions (removed)
		// V3 functions
		.pthread_clear_qos_tsd = _pthread_clear_qos_tsd,
		// V4 functions
		.pthread_current_stack_contains_np = pthread_current_stack_contains_np,
	};

	static const struct _libpthread_functions libpthread_funcs = {
		.version = 2,
		.exit = exit,
		.malloc = malloc,
		.free = free,
	};

	static const struct _libc_functions libc_funcs = {
		.version = 1,
		.atfork_prepare = libSystem_atfork_prepare,
		.atfork_parent = libSystem_atfork_parent,
		.atfork_child = libSystem_atfork_child,
#if defined(HAVE_SYSTEM_CORESERVICES)
		.dirhelper = _dirhelper,
#endif
	};

	static const struct _malloc_functions malloc_funcs = {
		.version = 1,
#if !TARGET_OS_DRIVERKIT
		.dlopen = dlopen,
		.dlsym = dlsym,
#endif
	};

	_libSystem_ktrace0(ARIADNE_LIFECYCLE_libsystem_init | DBG_FUNC_START);

	__libkernel_init(&libkernel_funcs, envp, apple, vars);
	_libSystem_ktrace_init_func(KERNEL);

	__libplatform_init(NULL, envp, apple, vars);
	_libSystem_ktrace_init_func(PLATFORM);

	__pthread_init(&libpthread_funcs, envp, apple, vars);
	_libSystem_ktrace_init_func(PTHREAD);

	_libc_initializer(&libc_funcs, envp, apple, vars);
	_libSystem_ktrace_init_func(LIBC);

	// TODO: Move __malloc_init before __libc_init after breaking malloc's upward link to Libc
	// Note that __malloc_init() will also initialize ASAN when it is present
	__malloc_init(apple);
	_libSystem_ktrace_init_func(MALLOC);

#if TARGET_OS_OSX
	/* <rdar://problem/9664631> */
	__keymgr_initializer();
	_libSystem_ktrace_init_func(KEYMGR);
#endif
	//并不是 _dyld start了就一定是加载了，dyld也需要加载
	_dyld_initializer();
	_libSystem_ktrace_init_func(DYLD);

	libdispatch_init();
	_libSystem_ktrace_init_func(LIBDISPATCH);

#if !TARGET_OS_DRIVERKIT
	_libxpc_initializer();
	_libSystem_ktrace_init_func(LIBXPC);

#if CURRENT_VARIANT_asan
	setenv("DT_BYPASS_LEAKS_CHECK", "1", 1);
#endif
#endif // !TARGET_OS_DRIVERKIT

	// must be initialized after dispatch
	_libtrace_init();
	_libSystem_ktrace_init_func(LIBTRACE);

#if !TARGET_OS_DRIVERKIT
#if defined(HAVE_SYSTEM_SECINIT)
	_libsecinit_initializer();
	_libSystem_ktrace_init_func(SECINIT);
#endif

#if defined(HAVE_SYSTEM_CONTAINERMANAGER)
	_container_init(apple);
	_libSystem_ktrace_init_func(CONTAINERMGR);
#endif

	__libdarwin_init();
	_libSystem_ktrace_init_func(DARWIN);
#endif // !TARGET_OS_DRIVERKIT

	__stack_logging_early_finished(&malloc_funcs);

#if !TARGET_OS_IPHONE
	/* <rdar://problem/22139800> - Preserve the old behavior of apple[] for
	 * programs that haven't linked against newer SDK.
	 */
#define APPLE0_PREFIX "executable_path="
	if (dyld_get_program_sdk_version() < DYLD_MACOSX_VERSION_10_11){
		if (strncmp(apple[0], APPLE0_PREFIX, strlen(APPLE0_PREFIX)) == 0){
			apple[0] = apple[0] + strlen(APPLE0_PREFIX);
		}
	}
#endif

#if TARGET_OS_OSX && !defined(__i386__)
	bool enable_system_version_compat = false;
	bool enable_ios_version_compat = false;
	char *system_version_compat_override = getenv("SYSTEM_VERSION_COMPAT");
	if (system_version_compat_override != NULL) {
		long override = strtol(system_version_compat_override, NULL, 0);
		if (override == 1) {
			enable_system_version_compat = true;
		} else if (override == 2) {
			enable_ios_version_compat = true;
		}
	} else if (dyld_get_active_platform() == PLATFORM_MACCATALYST) {
		if (!dyld_program_sdk_at_least(dyld_platform_version_iOS_14_0)) {
			enable_system_version_compat = true;
		}
	} else if (dyld_get_active_platform() == PLATFORM_IOS) {
		enable_ios_version_compat = true;
	} else if (!dyld_program_sdk_at_least(dyld_platform_version_macOS_10_16)) {
		enable_system_version_compat = true;
	}

	if (enable_system_version_compat || enable_ios_version_compat) {
		struct _libkernel_late_init_config config = {
			.version = 2,
			.enable_system_version_compat = enable_system_version_compat,
			.enable_ios_version_compat = enable_ios_version_compat,
		};
		__libkernel_init_late(&config);
	}
#endif // TARGET_OS_OSX && !defined(__i386__)

	_libSystem_ktrace0(ARIADNE_LIFECYCLE_libsystem_init | DBG_FUNC_END);

	/* <rdar://problem/11588042>
	 * C99 standard has the following in section 7.5(3):
	 * "The value of errno is zero at program startup, but is never set
	 * to zero by any library function."
	 */
	errno = 0;
}

可以看到libSystem_initializer中对很多系统库进行了初始化，其中_dyld_initializer()、libdispatch_init() 。
通过前面文章的堆栈，我们可以预先知道 其实objc_init是在libdispatch中执行的，所以我们再打开libdispatch的源码。

四、libdispatch

DISPATCH_EXPORT DISPATCH_NOTHROW
void
libdispatch_init(void)
{
	dispatch_assert(sizeof(struct dispatch_apply_s) <=
			DISPATCH_CONTINUATION_SIZE);

	if (_dispatch_getenv_bool("LIBDISPATCH_STRICT", false)) {
		_dispatch_mode |= DISPATCH_MODE_STRICT;
	}


#if DISPATCH_DEBUG || DISPATCH_PROFILE
#if DISPATCH_USE_KEVENT_WORKQUEUE
	if (getenv("LIBDISPATCH_DISABLE_KEVENT_WQ")) {
		_dispatch_kevent_workqueue_enabled = false;
	}
#endif
#endif

#if HAVE_PTHREAD_WORKQUEUE_QOS
	dispatch_qos_t qos = _dispatch_qos_from_qos_class(qos_class_main());
	_dispatch_main_q.dq_priority = _dispatch_priority_make(qos, 0);
#if DISPATCH_DEBUG
	if (!getenv("LIBDISPATCH_DISABLE_SET_QOS")) {
		_dispatch_set_qos_class_enabled = 1;
	}
#endif
#endif

#if DISPATCH_USE_THREAD_LOCAL_STORAGE
	_dispatch_thread_key_create(&__dispatch_tsd_key, _libdispatch_tsd_cleanup);
#else
	_dispatch_thread_key_create(&dispatch_priority_key, NULL);
	_dispatch_thread_key_create(&dispatch_r2k_key, NULL);
	_dispatch_thread_key_create(&dispatch_queue_key, _dispatch_queue_cleanup);
	_dispatch_thread_key_create(&dispatch_frame_key, _dispatch_frame_cleanup);
	_dispatch_thread_key_create(&dispatch_cache_key, _dispatch_cache_cleanup);
	_dispatch_thread_key_create(&dispatch_context_key, _dispatch_context_cleanup);
	_dispatch_thread_key_create(&dispatch_pthread_root_queue_observer_hooks_key,
			NULL);
	_dispatch_thread_key_create(&dispatch_basepri_key, NULL);
#if DISPATCH_INTROSPECTION
	_dispatch_thread_key_create(&dispatch_introspection_key , NULL);
#elif DISPATCH_PERF_MON
	_dispatch_thread_key_create(&dispatch_bcounter_key, NULL);
#endif
	_dispatch_thread_key_create(&dispatch_wlh_key, _dispatch_wlh_cleanup);
	_dispatch_thread_key_create(&dispatch_voucher_key, _voucher_thread_cleanup);
	_dispatch_thread_key_create(&dispatch_deferred_items_key,
			_dispatch_deferred_items_cleanup);
#endif
	pthread_key_create(&_os_workgroup_key, _os_workgroup_tsd_cleanup);
#if DISPATCH_USE_RESOLVERS // rdar://problem/8541707
	_dispatch_main_q.do_targetq = _dispatch_get_default_queue(true);
#endif

	_dispatch_queue_set_current(&_dispatch_main_q);
	_dispatch_queue_set_bound_thread(&_dispatch_main_q);

#if DISPATCH_USE_PTHREAD_ATFORK
	(void)dispatch_assume_zero(pthread_atfork(dispatch_atfork_prepare,
			dispatch_atfork_parent, dispatch_atfork_child));
#endif
	_dispatch_hw_config_init();
	_dispatch_time_init();
	_dispatch_vtable_init();
	_os_object_init();
	_voucher_init();
	_dispatch_introspection_init();
}

可以看到_os_object_init：

void
_os_object_init(void)
{
	_objc_init();
	Block_callbacks_RR callbacks = {
		sizeof(Block_callbacks_RR),
		(void (*)(const void *))&objc_retain,
		(void (*)(const void *))&objc_release,
		(void (*)(const void *))&_os_objc_destructInstance
	};
	_Block_use_RR2(&callbacks);
#if DISPATCH_COCOA_COMPAT
	const char *v = getenv("OBJC_DEBUG_MISSING_POOLS");
	if (v) _os_object_debug_missing_pools = _dispatch_parse_bool(v);
	v = getenv("DISPATCH_DEBUG_MISSING_POOLS");
	if (v) _os_object_debug_missing_pools = _dispatch_parse_bool(v);
	v = getenv("LIBDISPATCH_DEBUG_MISSING_POOLS");
	if (v) _os_object_debug_missing_pools = _dispatch_parse_bool(v);
#endif
}

可以看到_objc_init出现了。此时，整体的流程就完美的形成了一个闭环。

五、load方法和c++方法执行

我们知道了_dyld_objc_notify_register的来龙去脉之后，再来看load_images这个函数：

void
load_images(const char *path __unused, const struct mach_header *mh)
{
    if (!didInitialAttachCategories && didCallDyldNotifyRegister) {
        didInitialAttachCategories = true;
        loadAllCategories();
    }

    // Return without taking locks if there are no +load methods here.
    if (!hasLoadMethods((const headerType *)mh)) return;

    recursive_mutex_locker_t lock(loadMethodLock);

    // Discover load methods
    {
        mutex_locker_t lock2(runtimeLock);
        prepare_load_methods((const headerType *)mh);
    }

    // Call +load methods (without runtimeLock - re-entrant)
    call_load_methods();
}

其中call_load_methods函数:

void call_load_methods(void)
{
    static bool loading = NO;
    bool more_categories;

    loadMethodLock.assertLocked();

    // Re-entrant calls do nothing; the outermost call will finish the job.
    if (loading) return;
    loading = YES;

    void *pool = objc_autoreleasePoolPush();

    do {
        // 1. Repeatedly call class +loads until there aren't any more
        while (loadable_classes_used > 0) {
            call_class_loads();
        }

        // 2. Call category +loads ONCE
        more_categories = call_category_loads();

        // 3. Run more +loads if there are classes OR more untried categories
    } while (loadable_classes_used > 0  ||  more_categories);

    objc_autoreleasePoolPop(pool);

    loading = NO;
}

可以看到先执行类的load，再执行分类的load。

注意：

1、这里说的“先执行类的load，再执行分类的load”，一定是在同一个动态库或者可执行文件中。比如动态库A比动态库B先插入链接，动态库A的分类+(void)load，就会早于动态库B主类的+(void)load以及分类的+(void)load调用。

2、假如一个类（并且没有+(void)load方法），只有一个分类中有+(void)load。也就是“懒加载类+非懒加载分类”（这个后面会具体的解释什么是懒加载类）。那么这个分类会在编译的时候就加载了，同时会改变这个类的编译顺序，使得这个类可以提前加载。

3、由此可见，动态库中类的load方法，一定比主程序优先调用。

再具体看下call_class_loads的函数：

/***********************************************************************
* call_class_loads
* Call all pending class +load methods.
* If new classes become loadable, +load is NOT called for them.
*
* Called only by call_load_methods().
**********************************************************************/
static void call_class_loads(void)
{
    int i;

    // Detach current loadable list.
    struct loadable_class *classes = loadable_classes;
    int used = loadable_classes_used;
    loadable_classes = nil;
    loadable_classes_allocated = 0;
    loadable_classes_used = 0;

    // Call all +loads for the detached list.
    for (i = 0; i < used; i++) {
        Class cls = classes[i].cls;
        load_method_t load_method = (load_method_t)classes[i].method;
        if (!cls) continue;

        if (PrintLoading) {
            _objc_inform("LOAD: +[%s load]\n", cls->nameForLogging());
        }
        (*load_method)(cls, @selector(load));
    }

    // Destroy the detached list.
    if (classes) free(classes);
}

遍历所有的class,进行函数式调用load函数。
那么我可以通过一个demo来验证(在主程序中)：

编译顺序如下：

我在截图的文件中，都加入了+(void)load方法,看打印结果：

总结：首先会执行父类的+(void)load，然后执行子类的+(void)load，然后再根据分类的编译顺序去执行分类的+(void)load。

那么为什么会先执行类的+(void)load，再执行子类的+(void)load。
这个问题会在后面的“类的加载”博客中具体分析。
先简单的说明一下：因为如果要调用load方法，首先需要先初始化类(realizeClassWithoutSwift)。初始化类的过程中，肯定是要初始化类的整个继承链。所以在执行load方法之前，父类也被初始化了。而且父类会排在子类之前。
以下函数可以证明：

// This list always has superclasses first because of the way it is constructed
//T他的列表总是首先有超类，因为它的构造方式
static struct loadable_class *loadable_classes = nil;

/***********************************************************************
 * prepare_load_methods 中会调用schedule_class_load
 * Schedule +load for classes in this image, any un-+load-ed
 * superclasses in other images, and any categories in this image.
 **********************************************************************/
// Recursively schedule +load for cls and any un-+load-ed superclasses.
// cls must already be connected.
static void schedule_class_load(Class cls)
{
    if (!cls) return;
    ASSERT(cls->isRealized());  // _read_images should realize

    if (cls->data()->flags & RW_LOADED) return;

    // Ensure superclass-first ordering
    schedule_class_load(cls->getSuperclass());

    add_class_to_loadable_list(cls);
    cls->setInfo(RW_LOADED);
}

+(void)load 方法我们分析完了，那么c++方法是在什么时候去调用的呢？
我们再回到dyld的源码中：
刚才我们分析了doImageInit的流程，那么下面紧跟着就是doModInitFunctions这个函数。
这个函数就是去遍历执行c++方法的。
所以在我们最开始的问题中，就验证了为什么先执行 +(void)load，然后再执行c++。

六、main函数的执行

在dyld的main函数执行完之后，也就是所有的初始化和加载、链接等完成之后，会返回一个main()的函数地址。我们可以通过断点调试来证明：

我们走完dyld_start之后，我们读寄存器，可以看到rax = main的地址。最终跳转到main函数。

七、load方法和initialize方法加载顺序分析

load方法我们已经分析过了，是在main函数之前，所以它一定是在initialize之前，那么initialize我们在对消息的慢速查找流程中分析过：

/*****************************************************  **********************
* realizeAndInitializeIfNeeded_locked
* 如果尚未实现，则实现给定的类，如果尚未初始化，则对其进行初始化。
* inst 是 cls 或子类的实例，如果不知道则为 nil。
* cls 是要初始化和实现的类。
* initializer 为 true 初始化类，false 跳过初始化。  ******************************************************  ************************/
cls = realizeAndInitializeIfNeeded_locked(inst, cls, behavior & LOOKUP_INITIALIZE);
    /*
     if (slowpath(!cls->isRealized())) {
         对整个继承链和元类 都进行ro->rw->rwe 进行赋值，同时也验证了class为一个双向链表结构 (做类数据的准备工作)
        cls = realizeClassMaybeSwiftAndLeaveLocked(cls, runtimeLock);
        // runtimeLock may have been dropped but is now locked again
    }

    if (slowpath(initialize && !cls->isInitialized())) {
        //如果类没有初始化， 会进行初始化，并执行callInitialize(cls); 也就是每一个类在第一次使用的时候会默认走+ (void)initialize;方法的原因.
        cls = initializeAndLeaveLocked(cls, inst, runtimeLock);
        // runtimeLock may have been dropped but is now locked again

        // If sel == initialize, class_initialize will send +initialize and
        // then the messenger will send +initialize again after this
        // procedure finishes. Of course, if this is not being called
        // from the messenger then it won't happen. 2778172
    }
    */

一个类在第一次使用的时候，会去针对整个继承链去做初始化数据准备，并执行callInitialize(cls);

void callInitialize(Class cls)
{
    ((void(*)(Class, SEL))objc_msgSend)(cls, @selector(initialize));
    asm("");
}

可以看到initialize走的是消息发送，那么也验证了+ (void)initialize 一定是在+ (void)load之后的。
并且，+ (void)initialize 和 +(void)load一样，会先执行父类的+ (void)initialize方法，再执行子类的+ (void)initialize方法。

另外这里有一个重点，就是如果子类没有实现+ (void)initialize，而父类实现了，那么父类里面的+ (void)initialize会走2次，因为当子类去查找initialize时不存在的时候，会递归查找父类的方法。

那么对于分类呢，就像我们在探索消息慢速查找流程一样，在二分查找方法中，如果找到方法后，会继续向前去查找是否有相同名称的分类方法。
所以，如果分类里面也实现了+ (void)initialize，就会覆盖原来类的方法。
如果有多个分类实现了+ (void)initialize,那么就执行加载的最后一个分类的方法。因为上面说了：

在二分查找方法中，如果找到方法后，会继续向前去查找是否有相同名称的分类方法

再后面探索分类的时候，会举例子来再次复习这个重要的知识点。

总结流程图:
